How Does a Dobsonian Telescope Work?

A 10-inch Dobsonian telescope gathers roughly 1,600 times more light than the unaided human eye — a number that explains why backyard observers keep returning to this design generation after generation. Understanding how a Dobsonian telescope works is the essential first step toward unlocking that light-gathering power. The design pairs Newtonian reflector optics with a friction-based altazimuth rocker mount, delivering large apertures at prices that rival designs simply cannot match. For a broader look at the telescope landscape, the telescopes guide at TheBackyardGnome covers competing designs side by side.

The Dobsonian was popularized by amateur astronomer John Dobson in the 1960s and 1970s, who built large reflectors from salvaged porthole glass and plywood to bring big-aperture astronomy to sidewalk crowds. That original spirit — maximum aperture, minimum cost, minimal complexity — still defines the category today. A modern 8-inch Dobsonian typically runs $350–$550, while an equivalent aperture on a motorized equatorial mount often costs two to three times as much.

This guide covers the optics, the mount mechanics, the accessories, the setup procedure, and an honest look at where Dobsonians outperform the competition and where they fall short. Readers who want context on competing designs first will find the article on different types of telescopes a useful starting point.

The History and Design Philosophy Behind the Dobsonian

The Dobsonian telescope emerged from the sidewalk astronomy movement of mid-20th century San Francisco. John Dobson, a former monk with a passion for making the cosmos accessible, ground large mirror blanks from porthole glass and built rocker-box mounts from plywood and Teflon — materials available at any hardware store. His goal was democratic astronomy: pull a passerby off the street and show them Saturn's rings.

Two core innovations defined his approach:

• Newtonian reflector optics — mirrors instead of lenses, which are far cheaper to manufacture at large diameters and require no color correction.
• A simple rocker box altazimuth mount — Teflon pads gliding on laminate surfaces, providing smooth, fingertip-controlled motion in two axes with no gears, motors, or polar alignment required.

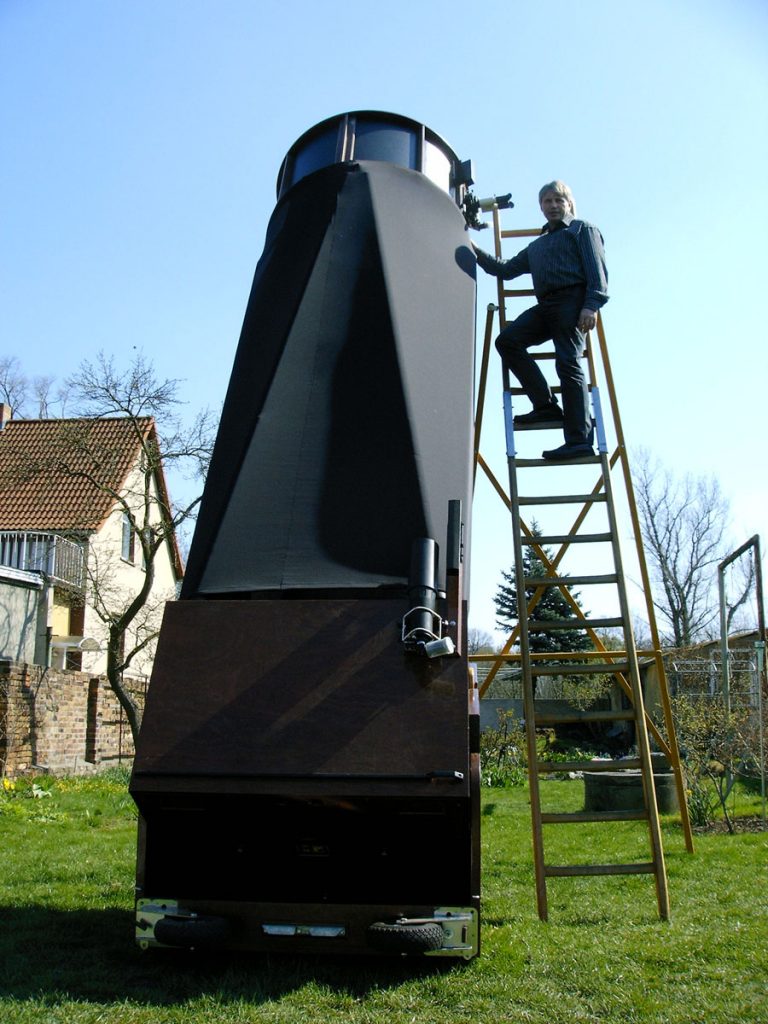

Commercial manufacturers eventually standardized the design, and today Meade, Sky-Watcher, Apertura, and Celestron all produce Dobsonian lines ranging from compact 6-inch tabletops to massive 20-inch truss-tube instruments.

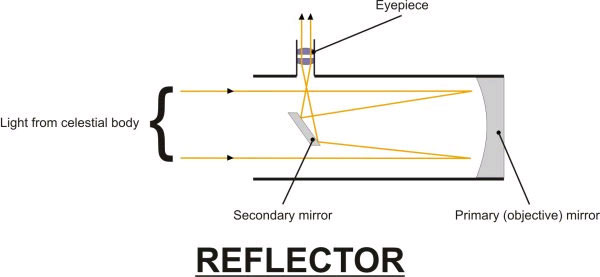

How a Dobsonian Telescope Works: The Optical System Explained

At its core, understanding how a Dobsonian telescope works comes down to two mirrors and simple geometry. Unlike refractors that bend light through glass lenses, a Dobsonian collects and focuses light entirely through reflection — a process that scales cheaply to large diameters.

The Primary Mirror

Light enters the open top of the tube and travels downward to a large concave mirror at the bottom — the primary mirror. Its parabolic curve focuses parallel incoming light rays to a single convergence point. The diameter of this mirror (the aperture) is the single most important specification on any Dobsonian: a larger mirror captures more photons, revealing fainter objects and finer detail.

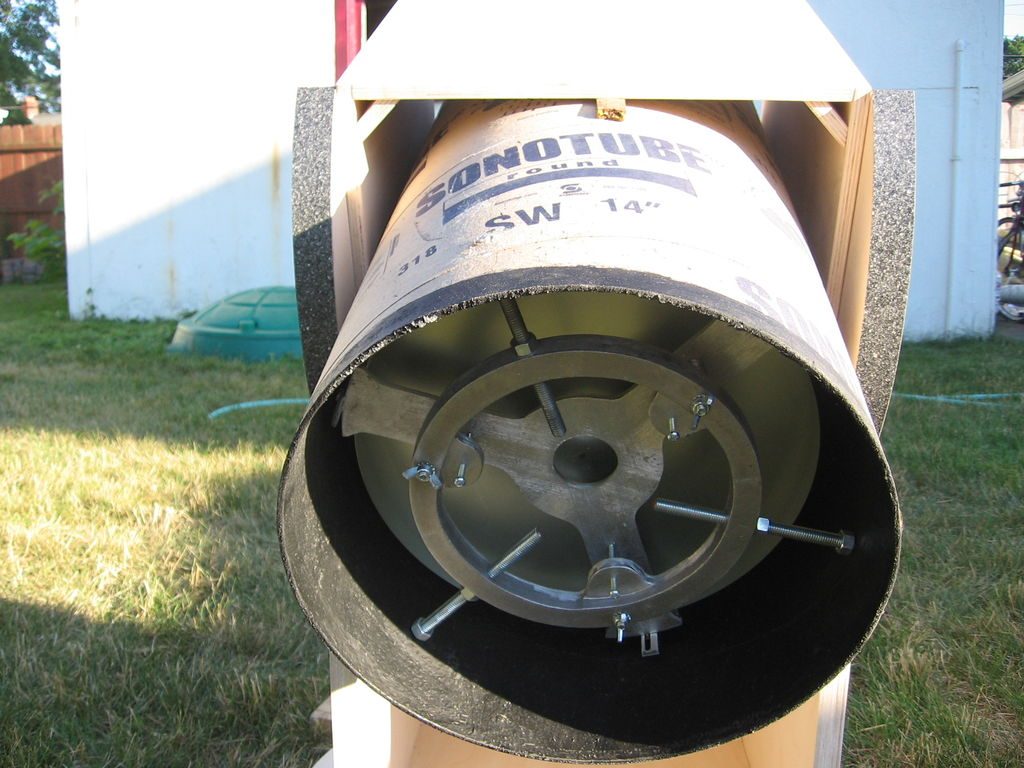

The Secondary Mirror and Focuser

Before converging light reaches its focal point, a small flat secondary mirror — held by a spider vane assembly near the top of the tube — intercepts it at a 45-degree angle. This deflects the light sideways through the focuser port, where an eyepiece then magnifies the image for the observer.

This two-mirror arrangement is the classic Newtonian reflector, invented by Isaac Newton in 1668. The Dobsonian adds nothing to this optical formula — it simply attaches the tube to the most practical, low-cost mount ever devised for large instruments. The optics themselves are well-proven and optically efficient, with no chromatic aberration and a relatively straightforward light path.

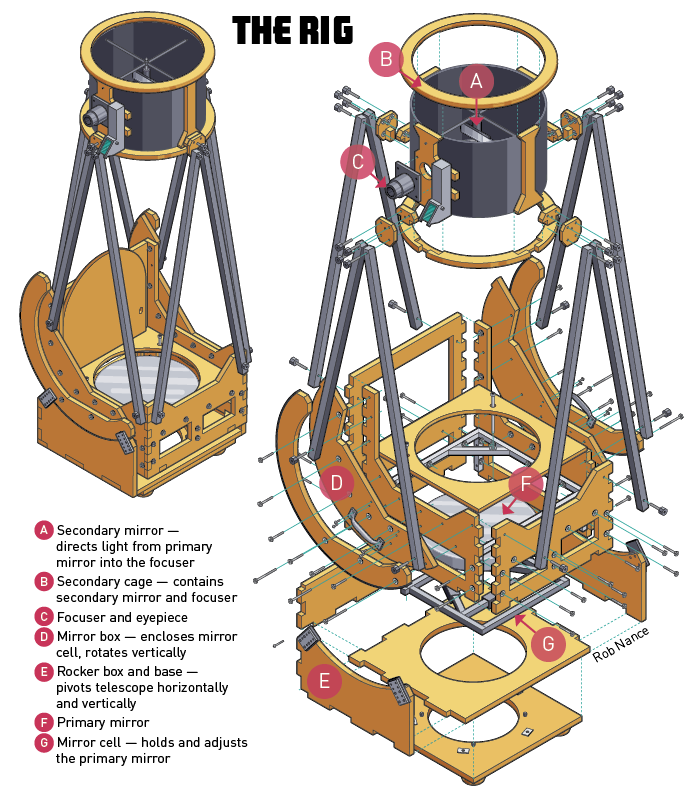

Core Components and Key Accessories

Each component of a Dobsonian serves a specific purpose. Understanding them helps observers troubleshoot issues, plan upgrades, and maintain the scope in peak condition.

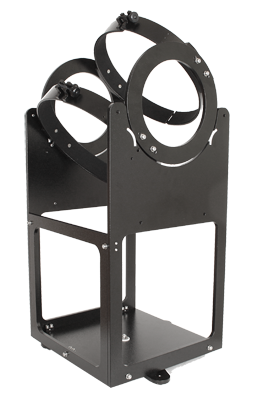

The Rocker Box Mount

The rocker box is the Dobsonian's defining structural element. It consists of two parts:

• The ground board — a circular base that rotates freely in azimuth (left and right), sitting on the ground or a flat surface.
• The rocker box body — curved side bearings hold the optical tube, allowing it to rotate in altitude (up and down).

Teflon pads on phenolic laminate or Ebony Star board create the characteristic smooth, controlled friction. The mount holds any position when released but yields easily to light pressure — no locks, no clamps needed.

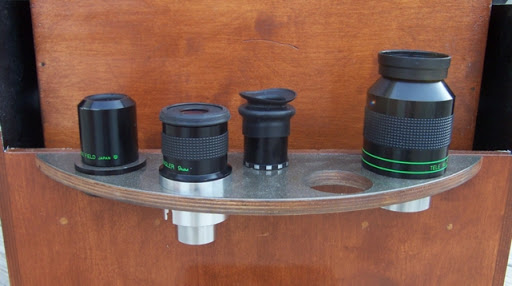

Eyepieces and Filters

Most Dobsonians ship with one or two basic eyepieces. Building a small eyepiece collection over time significantly expands what the scope can do. Key considerations:

• Focal length — shorter focal lengths (e.g., 6mm) produce higher magnification; longer focal lengths (e.g., 32mm) provide wider, brighter views suited to finding objects and scanning star fields.
• Eye relief — eyeglass wearers need a minimum of 15mm eye relief for comfortable full-field viewing without removing glasses.
• Apparent field of view (AFOV) — premium eyepieces with 68°–82° AFOV deliver noticeably more immersive, spacious views than budget 50° designs.

Narrowband filters — particularly OIII and UHC emission nebula filters — thread onto the eyepiece barrel and block light pollution wavelengths, dramatically improving contrast on nebulae from suburban backyards.

Entry-Level vs. Advanced Dobsonians: What Actually Changes

Aperture is the most straightforward variable separating entry-level from advanced models — but it is not the only one. The table below compares the most common Dobsonian aperture classes across the metrics that matter most to buyers:

Beyond aperture, advanced Dobsonians often include features not found on entry-level models:

• GoTo computerized drives — servo motors that automatically slew to any of thousands of catalog objects, eliminating the need to manually star-hop.
• Truss-tube construction — a collapsible open framework replaces the solid tube, reducing packed length by 50–60% for large-aperture instruments.
• Enhanced mirror coatings — dielectric coatings improve reflectivity from the standard ~88% aluminum to 96%+, producing meaningfully brighter images.

How to Set Up and Collimate a Dobsonian

Collimation — aligning the primary and secondary mirrors — is the single most important maintenance task a Dobsonian owner performs. A properly collimated scope delivers sharp, high-contrast views. A misaligned one produces soft, bloated images regardless of aperture quality.

Initial Assembly and Setup

1. Position the rocker box on stable, level ground — grass, a patio, or packed gravel all work.
2. Set the optical tube into the altitude bearings and confirm the balance: the tube should hold position at any angle without drifting forward or back.
3. Insert the longest focal-length eyepiece first. This gives the widest field of view for initial alignment and object location.
4. Allow thermal equilibration — move the scope outside 30–60 minutes before observing. Temperature differences between stored mirrors and outdoor air produce convective currents that degrade sharpness.
5. Verify collimation before the session with a collimating cap or Cheshire eyepiece.

Step-by-Step Collimation Process

1. Remove the eyepiece. Look straight down the focuser tube — the secondary mirror reflection should appear centered in the focuser's circular field.
2. Adjust the three secondary mirror tilt screws until the primary mirror's reflection appears centered within the secondary.
3. Using a Cheshire or laser collimator in the focuser, adjust the three primary mirror collimation knobs at the back of the tube until the secondary's reflection appears centered within the primary's reflection.
4. Perform a star test on a bright star at medium magnification: defocus slowly and check that the concentric diffraction rings are perfectly symmetrical in both directions. Fine-tune primary collimation until they are.

Most Dobsonians hold collimation well between sessions. A two-minute check at session start is sufficient for routine maintenance — only transport or accidental impact usually necessitates a full recollimation.

When a Dobsonian Shines — and When It Doesn't

The Dobsonian is not a universal solution. Knowing its strengths and limitations prevents disappointment and helps match the right tool to the right situation.

Ideal Use Cases for a Dobsonian

• Deep-sky visual observing — galaxies, nebulae, and star clusters reward aperture above almost every other variable. A 10-inch Dobsonian consistently outperforms a 4-inch refractor on these targets regardless of optical quality.
• Budget-limited aperture seekers — no competing design delivers comparable aperture per dollar for visual observing.
• Fixed or semi-fixed observing locations — backyards, local nature preserves, and managed open-space areas provide ideal platforms where portability is secondary. Protected natural areas like those stewarded by the Friends of Salt Springs Park and the Laguna Greenbelt Preserve often offer low light pollution and open skies well-suited to Dobsonian use.
• Observers who value simplicity — no polar alignment, no power source, minimal setup, no software dependencies.

When Another Telescope Type Fits Better

• Long-exposure astrophotography — tracking mounts are effectively mandatory for exposures beyond a few seconds. A manual Dobsonian cannot compete here, though GoTo/tracking Dobsonians partially bridge the gap for planetary imaging.
• Highly mobile, hike-in observing — observers who frequently carry equipment to remote sites benefit from compact refractors or small Maksutov-Cassegrains. Green spaces managed by organizations like the Open Land Conservancy of Chester County may require a moderate hike to reach the best viewpoints, making a lighter instrument more practical.
• High-magnification urban observing — the altazimuth mount requires constant manual nudging as Earth rotates. At magnifications above 200×, objects drift through the field in seconds, which can be tiring without a tracking platform.

Best Practices and Pro Tips for Better Observing Sessions

A Dobsonian's aperture advantage is only realized when the surrounding conditions and observer habits are dialed in. These practices consistently separate satisfying sessions from frustrating ones.

Before Each Session

• Check the atmospheric seeing forecast — turbulence degrades planetary and high-magnification views more than any equipment limitation. Free services like Meteoblue provide hourly seeing forecasts by location.
• Plan a target list in advance — knowing which objects are well-positioned (at least 30° above the horizon) before stepping outside eliminates wasted time searching in the dark.
• Allow full dark adaptation — human rod photoreceptors take 20–30 minutes to reach peak sensitivity after leaving lit indoor spaces. Any white light exposure resets the clock.
• Bring a red-light flashlight for star charts and note-taking. Red light wavelengths minimally affect night vision compared to white, blue, or green.

During the Session

• Always start with the lowest-magnification eyepiece, then increase gradually after centering the target. High magnification narrows the field of view, making initial acquisition nearly impossible.
• Practice averted vision — shifting the gaze slightly to the side of a faint object engages the eye's more sensitive peripheral rods, revealing structure that direct fixation misses entirely.
• For faint nebulae, try gently tapping the focuser. The resulting slight vibration helps the visual system distinguish real low-contrast structure from eye noise.
• Pairing a Dobsonian session with a well-positioned backyard fire pit setup adds warmth on cool evenings — place the fire well behind and to the side of the observing position so its glow stays outside the observer's dark-adapted field of view.

Frequently Asked Questions

The Dobsonian's enduring lesson is that aperture — not complexity, not price, not brand — is what actually connects an observer to the universe.
