How to Build a Kids Playset in Your Backyard

What separates a backyard children return to every day from one they ignore after a week? The answer, in most cases, is a well-built DIY backyard kids playset designed specifically for the available space. Pre-fabricated kits compromise on lumber quality, dimensional fit, and long-term durability. A custom build does not. This guide covers every phase of the process — from initial planning and design selection to hands-on construction and long-term maintenance — so that the finished structure becomes a permanent, safe centerpiece of the outdoor space.

Building a playset from scratch is not a casual impulse project. It demands accurate site assessment, careful material sourcing, and a working knowledge of basic carpentry. That said, the finished result — sized precisely to the yard and built from contractor-grade lumber — consistently outperforms anything that arrives flat-packed. The durability gap alone justifies the additional effort.

Readers who have tackled comparable outdoor builds, such as constructing a backyard deck from scratch, will recognize many of the same principles at work here: post anchoring, structural load distribution, and the importance of hardware selection.

Benefits and Trade-Offs of a DIY Playset Build

Advantages of Building Your Own

The case for building rather than buying is compelling on multiple fronts. Custom playsets consistently outlast kit versions because the builder controls lumber grade, fastener quality, and structural design from the outset. Key advantages include:

• Full dimensional control — the structure fits the yard precisely, with no wasted footprint or awkward overhangs
• Lumber quality — builders select #1 or better pressure-treated lumber rather than accepting whatever the kit manufacturer sourced
• Cost transparency — material costs are visible line by line; no markup is buried inside a retail kit price
• Expandability — adding a rock wall, tire swing, or sandbox later requires no proprietary brackets or adapter kits
• Aesthetic integration — stain color, roof style, and feature placement can complement the home's existing landscaping and exterior palette

Honest Drawbacks to Consider

A realistic assessment is essential before committing materials and time. The drawbacks are genuine, even if manageable:

• Build time ranges from one long weekend for a simple swing set to three or more weekends for a multi-level fort with integrated slide and climbing features
• Some municipalities require a building permit for structures exceeding a set height or square footage threshold
• Errors in post spacing or platform height are difficult to correct after concrete sets
• Safe framing and post-lifting requires at least two adults — this is not a solo project
• Material cost runs higher than a basic kit when using premium lumber and stainless hardware

Check permits before purchasing materials: Many jurisdictions require a permit for backyard structures taller than six feet or with a footprint over 100 square feet — confirm with the local building department to avoid costly stop-work orders.

Planning and Preparation

Site Selection

Site selection determines the safety, usability, and long-term condition of the finished structure. The optimal location meets the following criteria:

• Level ground, or ground that can be graded to within two inches of level without significant earthmoving
• At least six feet of clear fall zone on all sides of the outermost structural element
• Partial shade during peak afternoon hours — direct sun on metal hardware creates burn hazards for young children
• Visibility from the home's primary interior gathering space, enabling passive adult supervision
• Clear of underground utilities (in the United States, call 811 before digging any post holes)

The surface material beneath the structure matters as much as the build itself. The U.S. Consumer Product Safety Commission recommends a minimum of nine inches of loose-fill material — engineered wood fiber, rubber mulch, or wood chips — beneath and around any residential play structure to reduce injury severity in the event of a fall.

Tools and Materials

A complete material list prevents mid-project delays. The table below outlines primary lumber and hardware requirements for a mid-size playset with a 6×8 foot platform, single slide, and two swings:

Required tools include a post-hole digger or rented power auger, circular saw, drill/driver, speed square, 4-foot level, and bar clamps. A power auger is strongly recommended for clay-heavy or rocky soil — manual digging in those conditions adds hours to the project and introduces inconsistent hole depths.

Simple Builds vs. Advanced Structures: Choosing the Right Level

Beginner-Friendly Designs

First-time builders should resist the impulse to over-engineer. A simple A-frame swing set with a platform and single slide is structurally sound, safe for children, and achievable over a single weekend. Characteristics of beginner-appropriate builds:

• Single-level platform at four to five feet above grade
• Straight slide — not spiral or enclosed tube style
• Two to three swings on a freestanding beam
• Open railings only — no enclosed fort or roofed structure
• Six or fewer posts in the foundation layout

Beginner builds prioritize structural integrity over feature count. A simple, solid structure built correctly is safer and more durable than an ambitious design executed with errors.

Advanced Configurations

Experienced builders who are comfortable with multi-step carpentry projects will find multi-level playsets fully within reach. Advanced features that reward skill and planning include:

• Two-level decks connected by a bridge, catwalk, or enclosed tunnel
• Integrated climbing walls with resin hand holds set into a 2×8 face board
• Enclosed tube slides or spiral slides requiring reinforced header framing at the opening
• Rope ladders and tire swings requiring dedicated beam reinforcement
• Gable or shed-style roofing over the main platform for weather protection

Advanced builds require precise framing calculations and should rely on structural hardware — post-beam connectors, hurricane ties, and code-compliant joist hangers — rather than lag screws alone.

Playset Configurations for Every Backyard Size

Small and Medium Yards

Available backyard space is the primary design constraint for most residential properties. Effective space-saving strategies include:

• Vertical design — building up instead of out; a platform at five feet creates usable ground space beneath the deck
• Combined features — a sandbox integrated beneath the deck eliminates a separate footprint entirely
• Compact swing beam — a two-swing configuration on a 10-foot beam fits in backyards as narrow as 20 feet
• Freestanding units without anchored concrete footings — ideal for rental properties or situations where future relocation is likely

When planning within a tight perimeter, the required fall zone must factor into the total site area before any dimensions are finalized. A 10×12 foot structure needs a minimum 22×24 foot clear zone — that safety margin is non-negotiable regardless of how tight the lot is.

Large Yards and Open Spaces

Generous lots accommodate multi-structure play areas that grow with the children who use them. Common configurations for larger properties include:

• A primary fort-and-slide structure paired with a separate freestanding swing beam positioned 15 to 20 feet away
• A distinct sandbox or water table station within sight lines of the main structure
• A dedicated path connecting the play zone to the house — this guide on backyard walkway materials and costs covers surface options that handle concentrated foot traffic from children without eroding or creating trip hazards

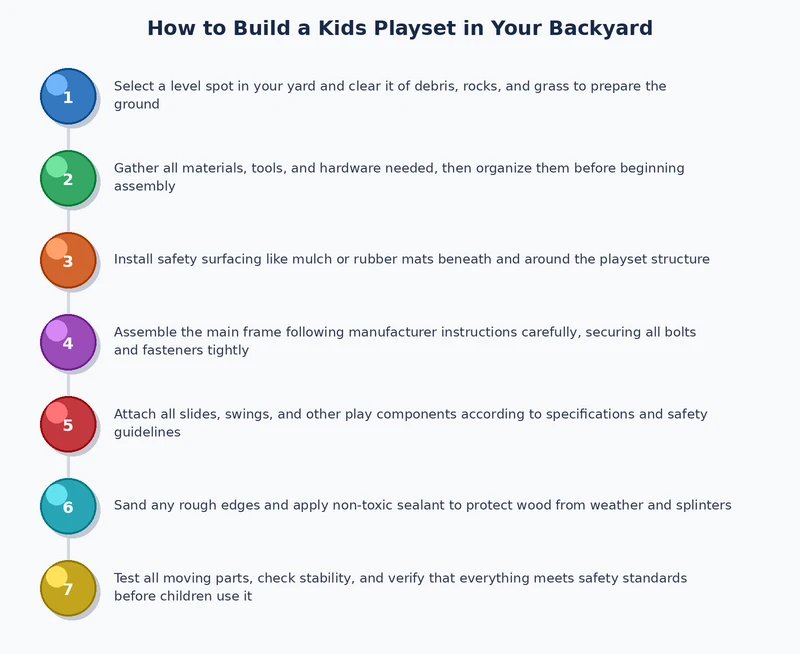

DIY Backyard Kids Playset: Step-by-Step Construction Guide

Foundation and Post Setting

The foundation determines the structural integrity of everything built above it. Execute this sequence in strict order:

1. Mark all post locations using batter boards and mason's line; verify square with the 3-4-5 triangle method before digging
2. Dig post holes to minimum 24-inch depth in temperate climates; go below the local frost line in colder regions to prevent heave
3. Set each post in fast-setting concrete and brace it plumb in two perpendicular directions before the concrete cures
4. Allow a minimum of 24 hours for concrete to cure before attaching any lateral framing — weight-loading before cure causes post movement
5. Cut all posts to final height after concrete has fully set; this ensures a level deck even if the ground has minor elevation variation

Platform and Frame Assembly

1. Install the outer frame using doubled 2×6 beams, secured with structural post-beam connectors at each post
2. Add interior joists at 16-inch on-center spacing using joist hangers — toe-nailing is not adequate for a load-bearing children's platform
3. Lay decking boards perpendicular to the joists, leaving a 1/8-inch drainage gap between boards
4. Install railing posts at each corner and at maximum 6-foot intervals; the rail top must sit at least 38 inches above the deck surface for any platform higher than 30 inches
5. Sand all exposed edges and corners to 120-grit smoothness before the structure enters service

Adding Play Features

Feature installation follows a deliberate sequence to prevent access conflicts during assembly:

1. Install the slide first — it requires a clear, unobstructed opening in the railing that is easier to frame before the surrounding rails are closed in
2. Attach the swing beam — if integrated into the main structure, use double-shear beam connectors at each post connection point
3. Mount the ladder or climbing wall on the lowest-traffic side of the structure, opposite the slide exit
4. Apply a penetrating wood sealer or exterior deck stain to all lumber surfaces after full assembly is complete

Hardware is the single most critical variable in playset longevity: Galvanized or stainless steel fasteners are mandatory — standard zinc-plated screws corrode within two seasons and fail silently under dynamic load from children at play.

Ongoing Maintenance and Safety Inspections

Seasonal Inspection Checklist

A playset that receives no maintenance degrades faster than most homeowners expect. Inspect the structure at the beginning and end of every active play season, covering each of the following points:

• All bolt and lag screw connections — retighten any that show movement, corrosion, or visible gap between members
• Post bases at ground level — probe the wood with a screwdriver; soft spots indicate rot that requires immediate post replacement
• Swing hangers and chains — inspect for elongation, stress cracks, or heavy rust scale that compromises load capacity
• Slide surface — check for cracks, sharp edges, or warping that could catch clothing or abrade skin
• Decking boards — replace any board that deflects more than 1/4 inch underfoot when loaded
• Safety surfacing depth — replenish loose-fill material if depth has dropped below six inches at any point in the fall zone

Establishing a fenced perimeter around the play zone adds an important layer of passive safety. The guide on installing a backyard privacy fence covers post spacing and gate hardware that restricts unsupervised access from neighboring lots or the street.

Wood Treatment and Repairs

Pressure-treated lumber is resistant to rot and insects — it is not immune to them. An annual treatment schedule significantly extends the structure's service life:

• Allow new pressure-treated lumber to dry for 60 to 90 days before applying any sealer; premature sealing traps residual moisture inside the wood
• Apply a water-repellent exterior wood sealer annually; reapply whenever water no longer beads on the surface
• Replace boards individually when rot is localized — do not attempt to chemically treat structurally compromised members
• Re-tighten all hardware at the start of each season; freeze-thaw cycles and dynamic loading work fasteners loose over time even in properly built structures

Frequently Asked Questions

Final Thoughts

A well-built DIY backyard kids playset is one of the highest-return projects a homeowner can undertake — it delivers immediate daily use, outlasts any comparable kit by years, and adds tangible property appeal. The next step is straightforward: select a design that matches the yard's dimensions and the builder's skill level, secure materials from a reputable lumber supplier, and schedule the first build weekend. Every subsequent phase follows from a strong foundation — both literally and figuratively.
