DIY Backyard Fence: How to Install a Wood Privacy Fence

What does it actually take to build a backyard fence that delivers real privacy, withstands two decades of weather, and passes a local permit inspection? The answer, based on our team's hands-on research, is more accessible than most people assume. DIY wood privacy fence installation is one of the most achievable structural projects for a motivated homeowner — and it connects naturally with the broader collection of guides in our DIY backyard projects section. The outcome depends almost entirely on how thoroughly the planning phase is handled before a single post hole gets dug.

Wood privacy fences remain the most popular residential fencing choice in North America. According to the general history of fence construction, wood has served as the primary boundary material across cultures for centuries — and pressure treatment has only extended that tradition further into the modern era. The material is affordable, customizable, and workable with tools most homeowners already own.

Our team's research consistently shows that the difference between a fence that lasts 25 years and one that fails within five comes down to three factors: species selection, post burial depth, and sealant frequency. The framework below addresses all three, alongside a full installation sequence, real project data, and a maintenance protocol our team considers the minimum viable standard for wood fence longevity.

Planning Your Wood Privacy Fence for the Long Haul

Choosing the Right Wood Species

The species decision shapes every downstream choice in a fence project. Cedar is the most widely recommended wood for residential privacy fences. It contains natural oils that resist moisture absorption and insect infiltration — qualities that translate to a lifespan of 15 to 30 years with appropriate maintenance. Redwood offers comparable properties but is more expensive and less available outside of western states.

Pressure-treated pine is the economical default in most U.S. regions. It accepts preservative chemicals under high pressure, extending durability well beyond untreated pine. Our team notes that pressure-treated lumber requires a minimum 30-day drying period before staining or sealing. Applying a finish too early causes adhesion failure — a problem that costs significantly more to correct than to prevent. In humid climates, spruce and fir consistently underperform compared to cedar and treated pine, showing degradation at the post base within a few years of installation.

Setting a Realistic Budget

Material costs for a standard 6-foot privacy fence range from $15 to $45 per linear foot, depending on wood species and hardware grade. A 150-linear-foot project using cedar typically runs between $2,200 and $4,500 in materials alone. Concrete for post setting, post caps, screws, and gate components add another 15 to 20 percent on top of that baseline.

Our team recommends building a 10 percent contingency into any fence budget before the first purchase. Boards warp in transit. Posts crack during setting. Concrete bags absorb moisture in a damp garage and harden before use. A modest buffer prevents the common situation where a nearly finished fence sits incomplete while homeowners wait on backordered material.

The Right Fence for Each Backyard Scenario

Privacy vs. Semi-Privacy Designs

Full privacy fences use pickets with no gap between boards. This style blocks sightlines entirely and is appropriate for pools, hot tubs, and outdoor living areas where visual screening is the primary goal. Semi-privacy designs leave a consistent 1-inch gap between pickets. They permit airflow while still limiting direct visibility — a practical balance for side yards and front property lines in neighborhoods with setback restrictions.

Shadowbox fencing alternates pickets on opposite sides of the horizontal rail. This produces a two-sided fence with no visible front or back, making it a useful configuration for shared property lines. Our team has observed that shadowbox designs are particularly well-received in situations where aesthetics on both sides of the boundary are a concern. The design uses roughly 30 percent more lumber than a standard single-face privacy fence, which affects both material cost and total weight load on posts.

Slope and Grade Considerations

Sloped terrain requires one of two approaches: stepped fencing or racked fencing. Stepped panels maintain a level top rail with each panel dropping in a stair-step pattern, creating gaps at the bottom where terrain descends. Racked panels follow the slope continuously, keeping the fence's top rail angled with the grade while maintaining consistent ground clearance. Most residential installers favor stepped panels for grades steeper than 10 degrees and racked panels for gradual slopes below that threshold.

Grade changes of more than 12 inches across a single panel span increase structural demands on post depth and concrete volume. Anyone familiar with the soil dynamics involved in a retaining wall project will recognize how lateral soil pressure compounds in sloped installations — the same forces that push against a retaining wall also affect post integrity in fence work.

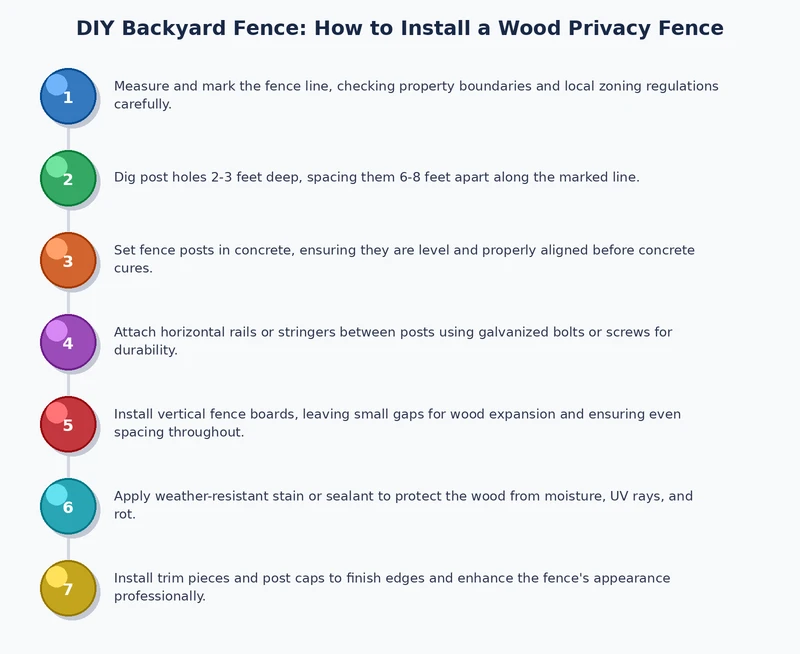

Step-by-Step DIY Wood Privacy Fence Installation

Laying Out the Fence Line

The first physical step is confirming property boundaries. Most municipalities require fences to sit at least 6 inches inside the surveyed property line. A call to the local building department confirms exact setback rules before any stakes go in the ground. Marking the fence line with stakes and mason's line before any digging begins is standard practice — it prevents one of the most expensive errors in residential fence installation, which is building on a neighbor's property.

Post spacing determines panel count and material quantities. An 8-foot on-center spacing is standard for 6-foot-tall privacy fences using 4×4 posts. Tighter 6-foot spacing costs more but significantly improves rigidity — particularly valuable in high-wind areas or at corners and gate openings where lateral forces concentrate. Our team marks post center points with spray paint after verifying the layout with a tape measure and a framing square at each corner turn.

Setting Posts in Concrete

Post holes should reach a depth equal to one-third of the above-ground post height, plus 6 additional inches for a gravel drainage base at the bottom. A 6-foot fence requires 9-foot posts: 6 feet above grade, 3 feet buried, with 6 inches of gravel beneath. Our team treats the gravel base as non-negotiable. It promotes drainage at the post base — the zone where moisture accumulation drives the most common fence failure mode.

Fast-setting concrete eliminates pre-mixing and speeds up the post-setting phase considerably. Dry concrete goes directly into the hole around the post, followed by a measured water pour. The post is braced with 2×4 stakes and checked for plumb on two perpendicular faces. Our team holds a minimum 24-hour cure time as a firm rule before attaching any rail hardware. Loading rails against uncured concrete shifts posts out of plumb in ways that are difficult to correct after the fact.

Attaching Rails and Pickets

Standard 6-foot privacy fences use two horizontal rails — one positioned near the top and one near the bottom of the framed section. Fences taller than 6 feet require a third center rail to prevent picket flex under wind load. Rails can be face-mounted to posts using metal post caps or notched into the post face for a recessed, cleaner fit. Face-mounting is faster; notching provides better long-term rail stability because the rail bears load on wood rather than fasteners alone.

Pickets attach most reliably with galvanized or stainless-steel screws. Nails are faster to install but are prone to pulling out as wood expands and contracts through seasonal humidity changes. Our team uses 2.5-inch exterior-grade screws and pre-drills each picket at the top and bottom attachment points to prevent splitting. A spacing jig — a scrap of wood cut to the desired gap width — maintains consistent intervals across the entire fence run without requiring repeated measurements.

Beginner-Friendly Approaches vs. Advanced Techniques

What Beginners Can Realistically Handle

A straightforward fence run along a flat property line is well within beginner capability. Digging post holes, mixing and pouring concrete, and fastening pickets are learnable skills with a modest learning curve. The main requirement is patience — specifically, the discipline to allow concrete to cure fully and to check every post for plumb before moving to the next one. Most beginner errors trace back to rushing one of those two steps.

Our team observes that homeowners who have completed comparable structural outdoor projects — such as a backyard deck from scratch — transition to fence installation without significant difficulty. The tool overlap is substantial: post hole diggers, levels, circular saws, and cordless drills are common to both projects. The main new skill fence work introduces is concrete handling.

When Advanced Skills Come Into Play

Gate installation is where complexity increases noticeably. A gate must swing freely, latch securely, and resist sagging under its own weight over years of use. Proper gate construction requires attention to hinge placement, gate post spacing, and internal frame bracing. A diagonal brace running from the bottom hinge corner to the top latch corner is the standard technique for preventing sag. Without it, gate frames rack and latch alignment fails within a few seasons.

Decorative post caps, custom picket profiles cut with a router, and lattice-top extensions all require tool comfort beyond what basic fence installation demands. These finishes elevate the visual result substantially, but they are best approached as a second-phase addition after the structural work is complete and inspected.

Pro Tips That Make the Job Easier

Tools Worth Renting

A gas-powered post hole auger is the single most impactful rental for any fence project involving more than 10 posts. Manual clamshell diggers are functional but become exhausting in compact or clay-heavy soil — the type of soil common in yards that need privacy fencing most. Equipment rental yards typically carry 8-inch and 12-inch diameter auger bits. The 8-inch bit is standard for 4×4 posts; the 12-inch provides the concrete volume needed for corner posts and gate posts that bear substantially higher lateral loads.

A pneumatic nailer accelerates picket installation considerably. Our team has documented the time difference: hand-nailing a single 8-foot fence panel takes roughly 12 minutes. With a framing nailer, the same panel takes under 3 minutes. On projects longer than 50 linear feet, the rental cost of the nailer pays for itself in time savings before the second weekend ends.

Saving Time on Picket Spacing

Consistent picket gaps are a visual priority that manual measurement makes tedious. Our team builds a dedicated spacer jig from a scrap board cut to the exact desired gap width. The jig hangs on the previously installed picket, the next picket presses against it, and fasteners go in. This eliminates the tape measure from the picket phase entirely and removes the cumulative measurement drift that causes visible spacing irregularities at the end of a fence run.

Always call 811 before digging — the national "Call Before You Dig" service marks underground utilities at no cost, and skipping this step risks serious safety hazards and utility repair bills that dwarf the cost of the fence itself.

Mistakes That Cost Homeowners Time and Money

Skipping the Permit

Fence permits are required in the majority of U.S. municipalities for structures taller than 4 feet. The permit process typically involves submitting a basic site plan showing fence location relative to property lines, setbacks, and utility easements. Our team has documented cases where homeowners completed full fence installations only to receive stop-work orders requiring removal of non-compliant sections. The permit fee — commonly between $50 and $150 — is invariably less expensive than remediation.

Homeowner associations impose requirements that layer on top of municipal codes. HOA rules may restrict fence height, acceptable materials, board orientation, and color. Checking both sets of requirements before purchasing lumber is standard due diligence. This is the same principle our team covers in the context of hardscape projects like the DIY paver patio installation guide — permits and community rules are the administrative foundation of any permanent outdoor structure.

Incorrect Post Depth

Shallow posts are the primary structural failure mode in residential wood fencing. The one-third rule — burying posts to a depth equal to one-third of their above-ground height — functions as a minimum standard, not a target. In regions with expansive clay soil, significant frost heave, or consistent high wind exposure, our team recommends extending burial depth by 6 additional inches beyond the calculated minimum.

Posts that begin leaning within the first year almost universally share the same root cause: insufficient depth combined with inadequate concrete volume. Concrete should extend at least 4 inches beyond the post diameter on all sides at the base of the hole. Partially filling the hole to save on concrete is a false economy — it trades a few dollars in materials for a fence that may require complete post replacement within three to five years.

What Real Fence Projects Look Like

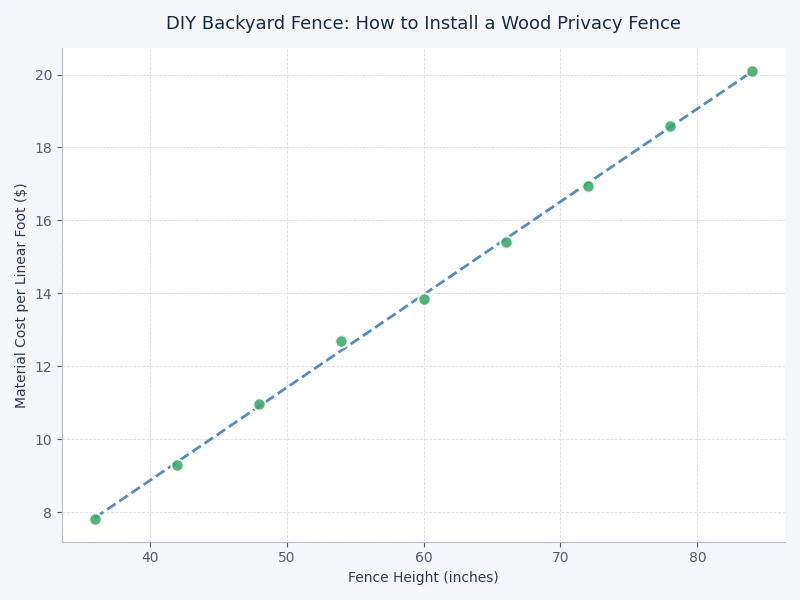

Our team compiled data from documented residential fence installations to provide a practical comparison of common project configurations. The figures below reflect typical material costs, time investments, and expected outcomes across different wood species and fence styles under standard DIY conditions.

These figures assume DIY labor, mid-grade hardware, and standard post-hole concrete volumes. Regional lumber prices shift totals meaningfully. Markets in the Pacific Northwest price cedar at the low end of these ranges; midwestern and southeastern markets typically see cedar costs 20 to 40 percent higher due to transportation distance from primary growing regions.

When Things Go Wrong Mid-Installation

Leaning Posts

A post that leans after concrete cures is one of the more frustrating mid-project discoveries. When the problem is caught within the first 24 hours of the pour, it is sometimes possible to break up the partially cured concrete and reposition the post. After 48 hours, the standard correction involves adding a concrete collar at grade level while using a ratchet strap or come-along to pull the post back toward plumb as the collar sets.

For fully cured posts with significant lean, extraction and resetting is the most structurally sound approach. A hi-lift jack and a heavy chain provide enough mechanical advantage to pull a post free in most residential soil types. Our team recommends having a second person stabilize the post during extraction to prevent it from falling and disturbing adjacent post locations. Attempting to live with a leaning post and compensating through rail attachment geometry rarely produces satisfactory long-term results.

Warped or Twisted Boards

Wood movement is a constant in fence construction. Boards that were straight at the lumber yard frequently show bow or twist after sitting in a garage or driveway for several days. Our team's practice is to cull boards before installation begins — setting aside any picket with more than a quarter-inch bow along its length. Forcing a warped picket flat during installation places stress on the fastener connection and typically results in the board pulling free from the rail within a single season.

Mild bow in pickets can often be corrected by fastening at three points rather than two — top, center, and bottom. The center fastener distributes corrective pressure across the board's length and reduces visible waviness across a finished panel. Severe twist, however, has no reliable in-place correction and those boards are better returned to the lumber yard as defective material.

Keeping Your Wood Fence in Top Condition

Seasonal Inspection Routine

Our team recommends a twice-annual inspection cycle for wood privacy fences: once in early spring after freeze-thaw cycles conclude, and once in early fall before humidity levels rise in most regions. The checklist is focused and practical — check for post movement at the soil line, look for split or cracked pickets, confirm gate hardware security, and assess the condition of any sealant or stain on exposed surfaces.

Ground contact is the fastest path to fence failure. Posts that show rot at the soil line almost always have compromised drainage or missing post-base hardware. Metal post bases that elevate the wood post slightly above grade — even by half an inch — have been shown to roughly double the effective lifespan of a pressure-treated post in wet climates by preventing standing water contact at the most vulnerable point in the assembly.

Sealing and Staining

Both cedar and pressure-treated pine benefit from a penetrating wood sealer applied within the first full season after installation. Our team looks for products that combine water repellent and UV inhibitor properties in a single formulation. UV exposure causes surface graying in cedar — a largely cosmetic outcome, but one that accelerates surface checking and fine cracking if the wood is left unprotected through multiple summers.

Reapplication frequency depends on sun exposure, regional climate, and product type. Horizontal surfaces — cap rails, post tops, gate frames — absorb moisture faster and need attention more frequently than vertical pickets. Our team's general observation is that most homeowners benefit from resealing horizontal elements every 18 to 24 months, with a full fence treatment on a 3 to 4-year cycle.

The material behavior of wood fence sealants is closely parallel to what our team covers in the context of outdoor furniture finishes. Anyone who has navigated wood treatment decisions covered in guides on choosing weather-resistant outdoor furniture will find the same product categories and application logic apply directly to fence maintenance.

A wood privacy fence built on properly set posts and maintained with consistent sealing will outlast nearly everything else in the backyard — the foundation always determines the lifespan.
