DIY Backyard Pond: How to Dig and Line a Small Koi Pond

More than 8 million ornamental ponds currently operate in North American backyards, and the pond and water garden industry consistently reports that owner-built installations now account for the majority of new builds each year. A DIY backyard koi pond ranks among the most technically demanding projects in the broader category of DIY backyard projects, requiring precise excavation geometry, liner selection, and filtration engineering before the first fish enters the water. The gap between a thriving pond and a chronic maintenance problem comes down almost entirely to the decisions you make before the first shovelful of soil is moved.

Koi are long-lived animals — healthy specimens routinely reach 20 to 25 years under managed pond conditions — but they impose precise demands on water volume, dissolved oxygen saturation, and nitrogen cycle stability that many first-time builders underestimate significantly. Understanding those biological requirements before excavation separates a pond that sustains a thriving fish population from one that cycles through algae blooms, pH crashes, and recurring fish losses across seasons. Your planning horizon for a koi pond is measured in decades, not months.

The biology and the engineering are inseparable here. Every structural choice you make during construction directly affects the water chemistry your fish will live in for the life of the installation.

What Most Builders Get Wrong Before They Dig

The most persistent misconception in koi pond construction is that a smaller pond — 500 gallons or under — is simpler to manage than a larger one. In practice, smaller water volumes amplify every chemical and thermal imbalance, from ammonia spikes to summer temperatures that climb into lethal ranges, making a compact installation more technically demanding than a 1,500-gallon pond in most conditions. The second widespread assumption — that preformed rigid shells outperform flexible liners in long-term durability — consistently fails field testing, where high-quality EPDM rubber liners conform to irregular excavation shapes and survive freeze-thaw cycling far more reliably over multi-decade timelines.

The Liner Material Debate

Liners are graded under ASTM standards for puncture resistance and UV degradation. 45-mil EPDM rubber is the industry baseline, with 60-mil EPDM and RPE (reinforced polyethylene) providing measurable longevity upgrades at a cost premium most builders recover within two maintenance cycles. Fiberglass preforms, despite their finished appearance at installation, constrain depth and footprint options and develop stress fractures along freeze lines in USDA hardiness zones 5 and colder over multiple winters.

Why Depth Is Non-Negotiable

Koi require a minimum excavation depth of 3 feet, with 4 feet preferred, to survive winter safely across most of North America. Shallower water freezes solid during hard winters, and unfavorable surface-area-to-depth ratios produce lethally warm temperatures in full-sun sites during summer heat events. Your depth specification should account for frost penetration depth in your specific USDA hardiness zone before you mark the outline on the ground.

When a Koi Pond Belongs in Your Backyard — and When It Doesn't

A koi pond justifies its footprint when you have a minimum of 100 square feet of relatively level, unshaded ground, reliable water access for evaporation top-offs, and an electrical circuit within 25 feet of the installation site for continuous pump and UV sterilizer operation. It becomes a poor investment when your chosen location sits beneath established deciduous trees, where leaf litter introduces tannins and organic load that overwhelm biological filtration between weekly cleanings. Proximity to surface runoff channels also disqualifies a site, since fertilizer and herbicide residue entering the pond can produce fish losses within hours of a rain event.

Reading Your Site Before You Commit

Clay-heavy soils hold excavation walls cleanly during digging but generate hydrostatic pressure against liner seams during high water-table periods, which can displace a liner from its marginal shelf over time. A basic percolation test — filling a 12-inch hole with water and measuring the drop rate per hour — reveals drainage behavior that directly affects backfill compaction and shelf stability before you invest in materials. Sandy soils drain well but require a thoroughly compacted underlayment layer to prevent liner migration under sustained water load.

Early Decisions That Pay Off for Years

Installing a bottom drain during excavation costs approximately $80 in materials and eliminates the most labor-intensive recurring maintenance task you would otherwise perform manually: vacuuming accumulated mulm from the pond floor every season. Oversizing your biological filter by 30 to 50 percent above your intended fish load costs relatively little at installation and prevents the nutrient loading that drives persistent green water and string algae outbreaks across warm months. Pairing your pond margin with a finished paver surround creates a clean edge transition that also prevents soil erosion from rainfall runoff entering the pond water column.

Pump and Aeration Sizing

Your circulation pump should turn the total pond volume over at least once per hour under normal fish loads, with keepers running higher stocking densities targeting twice-per-hour turnover to maintain dissolved oxygen saturation. Submersible pumps rated for continuous-duty aquatic applications outperform general-purpose sump pumps in longevity for this use case by a significant margin. A dedicated air pump feeding fine-bubble diffusers placed at the deepest zone provides oxygen stratification insurance during summer heat events when surface gas exchange alone becomes insufficient for your fish load.

What Experienced Pond Builders Do Differently

Professional pond installers consistently place a geotextile underlayment fabric beneath the primary liner, absorbing puncture risk from subsurface stones, root tips, and compaction irregularities that EPDM alone cannot tolerate over years of ground movement and seasonal freeze cycles. Most add a layer of clean washed sand between the underlayment and excavation floor to create a compressible, conforming base. String-lining your pond perimeter at final grade before liner placement lets you verify marginal shelf levels with a line level rather than trusting visual estimation across an uneven site. Integrating landscape lighting around the pond edge — covered in depth in this backyard landscape lighting design guide — extends the visual impact of your water feature into evening hours without a separate electrical planning phase if you route conduit during excavation.

Establishing Water Chemistry Before Fish Arrive

Running your biological filter for four to six weeks before introducing koi allows nitrifying bacteria — primarily Nitrosomonas and Nitrobacter species — to colonize filter media at sufficient density to process fish waste without ammonia and nitrite spikes. The U.S. Environmental Protection Agency's water quality standards resources provide useful reference benchmarks when interpreting your baseline chemistry readings during this fishless cycling period. Target ammonia and nitrite at zero ppm and nitrate below 20 ppm before introducing any livestock to the system.

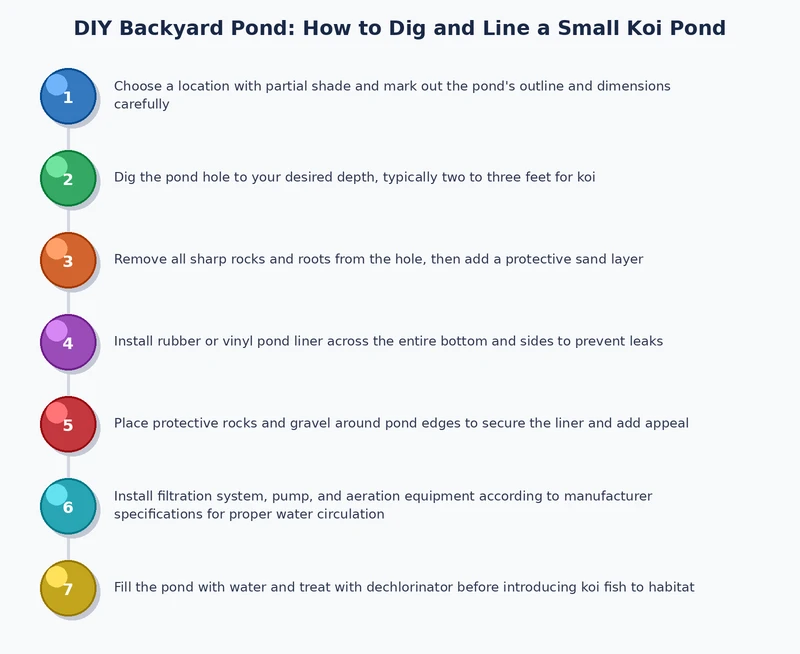

How to Dig and Line a Small DIY Backyard Koi Pond

Mark your pond outline using marking paint or a garden hose, incorporating a marginal shelf — a 12-inch-wide ledge at 12 inches of depth — that encircles the perimeter and supports aquatic plant containers. Excavate the entire footprint to shelf depth first across the full area, then drop the center zone incrementally to your target depth of 3 to 4 feet. Slope the pond floor 2 to 3 degrees toward your bottom drain location to encourage passive solids migration without creating visible grade across the finished water surface.

Liner Installation Sequence

Drape the liner across the excavation without pulling it taut, allowing it to gather naturally into corners and shelf transitions rather than stretching across them under tension. Weight the perimeter temporarily with flat stones, then fill the pond slowly — 6 inches of water at a time — pausing between fills to smooth folds by hand from inside the excavation. Each fill cycle presses the liner progressively into conformity with the excavation contours below it. Trim excess liner to 12 to 18 inches beyond the pond edge, fold it beneath a capstone or paver, and anchor with liner pins driven at 18-inch intervals to prevent creep.

What Small Koi Ponds Look Like in Real Backyards

A 1,000-gallon oval pond in a 10-by-15-foot footprint at 3.5 feet deep provides a workable starting density for 8 to 10 juvenile koi, with capacity to expand the school as fish mature over their first two seasons. Integrating this installation alongside raised garden beds creates a productive and visually cohesive hardscape zone where pond overflow can gravity-drain into an adjacent planting area for passive irrigation. Formal rectangular designs with cut-stone coping project a structured, architectural aesthetic; freeform excavations edged with boulders and native marginal plants read as integrated landscape features rather than inserted water elements.

Sizing Reference by Fish Load

Frequently Asked Questions

A koi pond built on sound engineering decisions rewards you for decades; one built on assumptions rarely survives its first summer intact.
